Your most Valuable Radiation QA and Dosimetry Tools.

For product pricing and information please contact:
Sanna Nilsson
Nigel Attwood

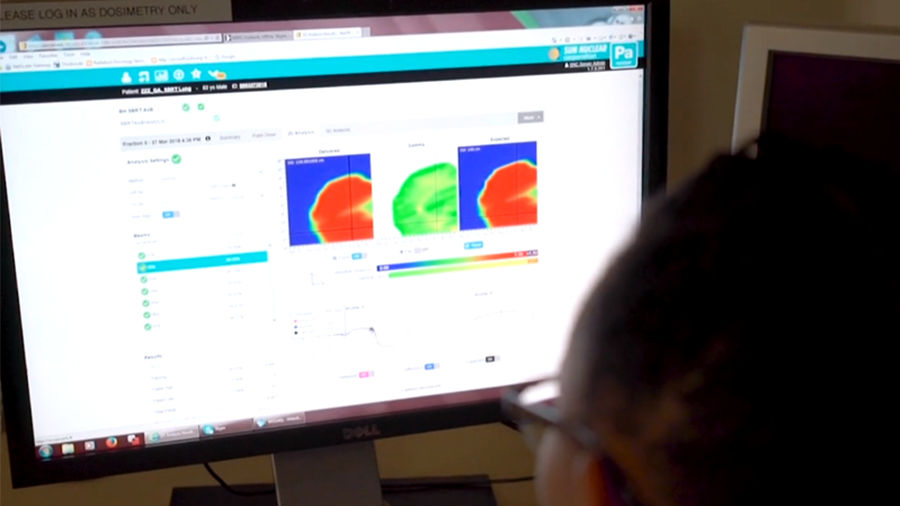

PerFraction 3D listens for and captures daily (Fraction n) EPID image files for each patient fraction, then automatically processes and analyses compared to baseline, and saves the results to the database ready for tending or further investigation. Custom failure result notifications are automatically emailed. Detects errors from patient setup (including weight loss, shifts) and machine (including MLC, collimators). Also performed for pre-treatment (Fraction 0) QA.  Supplied with a pre-configured Server, this is a web-based application, easily accessed from any networked computer. Supports Varian & Elekta Linacs; Mosaiq & Aria R&V systems; and DICOM RT files from most TPS. Up-coming: LOTS! Watch this space.

PerFraction 3D listens for and captures daily (Fraction n) EPID image files for each patient fraction, then automatically processes and analyses compared to baseline, and saves the results to the database ready for tending or further investigation. Custom failure result notifications are automatically emailed. Detects errors from patient setup (including weight loss, shifts) and machine (including MLC, collimators). Also performed for pre-treatment (Fraction 0) QA.  Supplied with a pre-configured Server, this is a web-based application, easily accessed from any networked computer.

Supports Varian & Elekta Linacs; Mosaiq & Aria R&V systems; and DICOM RT files from most TPS.

Up-coming: LOTS! Watch this space.

DoseCheck is an automated, independent, secondary 3D dose volume calculation, using collapsed-cone convolution/superposition algorithm. Now you can analyse per-beam doses, clinical goals, DVHs and verify TPS dose calc. Supplied with a pre-configured Server, this is a web-based application, easily accessed from any networked computer. Supports Varian & Elekta Linacs; RayStation, Monaco, Eclipse, Pinnacle TPS; Conformal, IMRT, VMAT, SRS/SBRT photon beams. Up-coming: dynamic wedges, electron beams.

DoseCheck is an automated, independent, secondary 3D dose volume calculation, using collapsed-cone convolution/superposition algorithm. Now you can analyse per-beam doses, clinical goals, DVHs and verify TPS dose calc. Supplied with a pre-configured Server, this is a web-based application, easily accessed from any networked computer.

Supports Varian & Elekta Linacs; RayStation, Monaco, Eclipse, Pinnacle TPS; Conformal, IMRT, VMAT, SRS/SBRT photon beams.

Up-coming: dynamic wedges, electron beams.

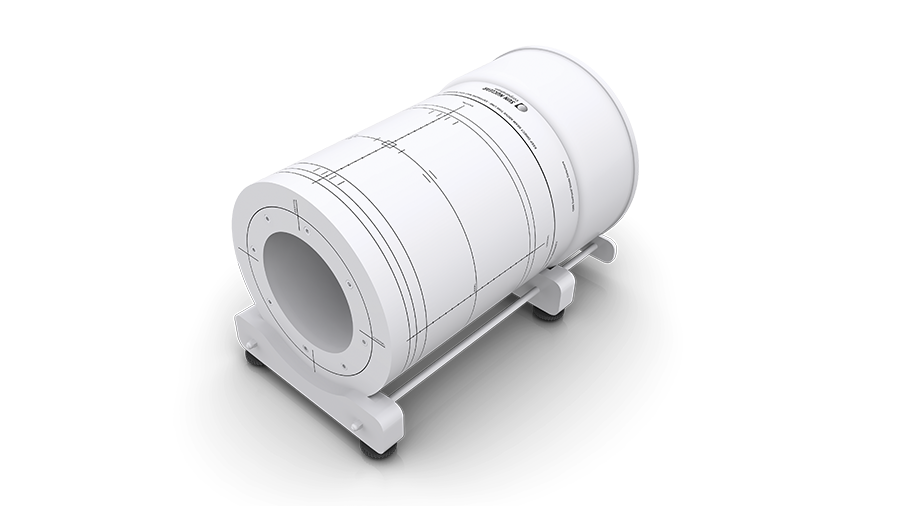

ArcCheck is a 4D isotropic cylindrical detector array for rotational / IMRT patient QA & dosimetry plus machine QA. Designed specifically for VMAT / arc patient plan QA, and consists of 1,386 SunPoint diodes in a cylindrical geometry with heligrid design. Real-time updates: time-synchronised dose measurements and gantry angle-synchronised using virtual inclinometer. QA all clinical photon beams including FFF. Easy setup, light-weight, single new blue PDI3 cable. ArcCheck options: MRI-compatible ArcCheck, MultiPlug, CavityPlug, 3DVH & Respiratory MotionSim plus software maintenance. Also FFF-upgrade for older ArcChecks.

ArcCheck is a 4D isotropic cylindrical detector array for rotational / IMRT patient QA & dosimetry plus machine QA. Designed specifically for VMAT / arc patient plan QA, and consists of 1,386 SunPoint diodes in a cylindrical geometry with heligrid design. Real-time updates: time-synchronised dose measurements and gantry angle-synchronised using virtual inclinometer. QA all clinical photon beams including FFF. Easy setup, light-weight, single new blue PDI3 cable.

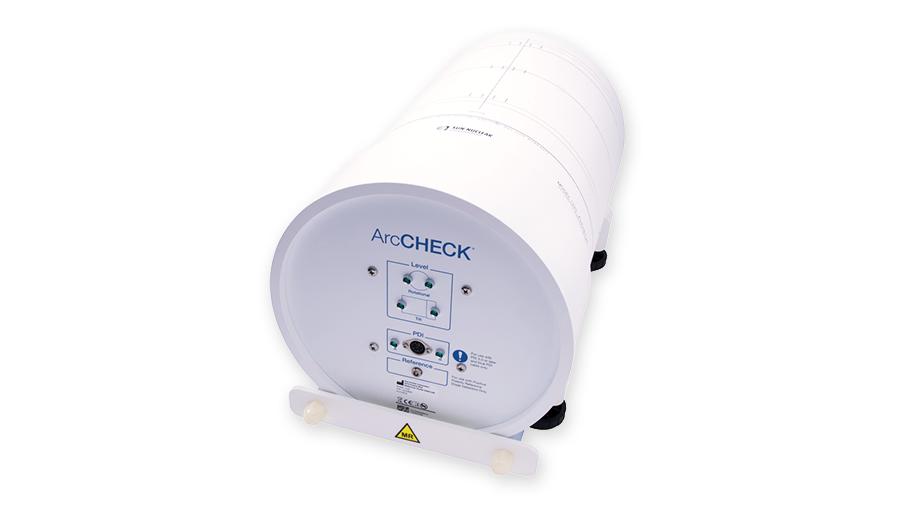

ArcCheck options: MRI-compatible ArcCheck, MultiPlugCavityPlug, 3DVH & Respiratory MotionSim plus software maintenance. Also FFF-upgrade for older ArcChecks.

3DVH for ArcCheck uses existing QA measurements (with Plug inserted) to predict impact on patient dose and DVH by processing data from the phantom-based geometry to 3D heterogeneous patient dose-based geometry using ‘Planned Dose Perturbation’ (PDP). Supports non-coplanar beams and plan comparison analysis. 3DVH options: Respiratory MotionSim (from Version 3.0), TomoTherapy Interface plus software maintenance. Respiratory MotionSim uses existing QA and CT measurements to simulate the dosimetric impact of target motion. Define motion trajectories and quantitatively evaluate the impact of organ motion on dose distribution.

3DVH for ArcCheck uses existing QA measurements (with Plug inserted) to predict impact on patient dose and DVH by processing data from the phantom-based geometry to 3D heterogeneous patient dose-based geometry using ‘Planned Dose Perturbation’ (PDP). Supports non-coplanar beams and plan comparison analysis.

3DVH options: Respiratory MotionSim (from Version 3.0), TomoTherapy Interface plus software maintenance.

Respiratory MotionSim uses existing QA and CT measurements to simulate the dosimetric impact of target motion. Define motion trajectories and quantitatively evaluate the impact of organ motion on dose distribution.


MapCheck2 is a 2D detector array with easy to use software for quick, precise and accurate patient plan QA of IMRT dose distributions (including FFF), electron treatments plus machine QA. Consists of 1,527 SunPoint diodes uniformly spaced in a field size of 32cm x 26cm. Real-time updates (50ms), user calibrations with single power/data cable. MapCheck2 options: 3DVH, IMF or GMF (with Linac adapter plate) for gantry rotations measurements, Solid Water HE,  SRS Film QA for use with CyberKnife (and other stereotactic modalities) to analyse and convert scanned film image data to dose, for import into a TPS, plus software maintenance. Also FFF-upgrade for older MapChecks.

MapCheck2 is a 2D detector array with easy to use software for quick, precise and accurate patient plan QA of IMRT dose distributions (including FFF), electron treatments plus machine QA. Consists of 1,527 SunPoint diodes uniformly spaced in a field size of 32cm x 26cm. Real-time updates (50ms), user calibrations with single power/data cable.

MapCheck2 options: 3DVH, IMF or GMF (with Linac adapter plate) for gantry rotations measurementsSolid Water HE SRS Film QA for use with CyberKnife (and other stereotactic modalities) to analyse and convert scanned film image data to dose, for import into a TPS, plus software maintenance. Also FFF-upgrade for older MapChecks.

3DVH for MapCheck2 uses existing QA measurements to predict impact on patient dose and DVH by processing data from the phantom-based geometry to 3D heterogeneous patient dose-based geometry using ‘Planned Dose Perturbation’ (PDP).

3DVH for MapCheck2 uses existing QA measurements to predict impact on patient dose and DVH by processing data from the phantom-based geometry to 3D heterogeneous patient dose-based geometry using ‘Planned Dose Perturbation’ (PDP).






PlaniQ evaluates, scores and benchmarks treatment plan quality. Use to check feasibility of clinical goals for a patient-specific geometry, verify auto planning, compare plans and ultimately improve radiation oncology's treatment plan outputs.

PlaniQ evaluates, scores and benchmarks treatment plan quality. Use to check feasibility of clinical goals for a patient-specific geometry, verify auto planning, compare plans and ultimately improve radiation oncology's treatment plan outputs.

rf-IVD2 system is a wireless diode in-vivo dosimetry system with Control Module and software for real-time patient radiation monitoring. Includes temperature compensation and tools to apply other corrector factors. Has 4 detector channels with ability to expand.  rf-IVD2 options: detector pods, wall-mounted chargers & IsoRad Detector: Cylindrical SunPoint diode radiation-hardened detector used for an isotropic response in tangential beam treatments. Available for three ranges of photon energy, or QED Detector: Flat SunPoint diode radiation-hardened detector for measurements perpendicular to the radiation beam. Available for measurement of electron, skin and three ranges of photon energies.

rf-IVD2 system is a wireless diode in-vivo dosimetry system with Control Module and software for real-time patient radiation monitoring. Includes temperature compensation and tools to apply other corrector factors. Has 4 detector channels with ability to expand.

rf-IVD2 options: detector pods, wall-mounted chargers & IsoRad DetectorCylindrical SunPoint diode radiation-hardened detector used for an isotropic response in tangential beam treatments. Available for three ranges of photon energy, or QED DetectorFlat SunPoint diode radiation-hardened detector for measurements perpendicular to the radiation beam. Available for measurement of electron, skin and three ranges of photon energies.

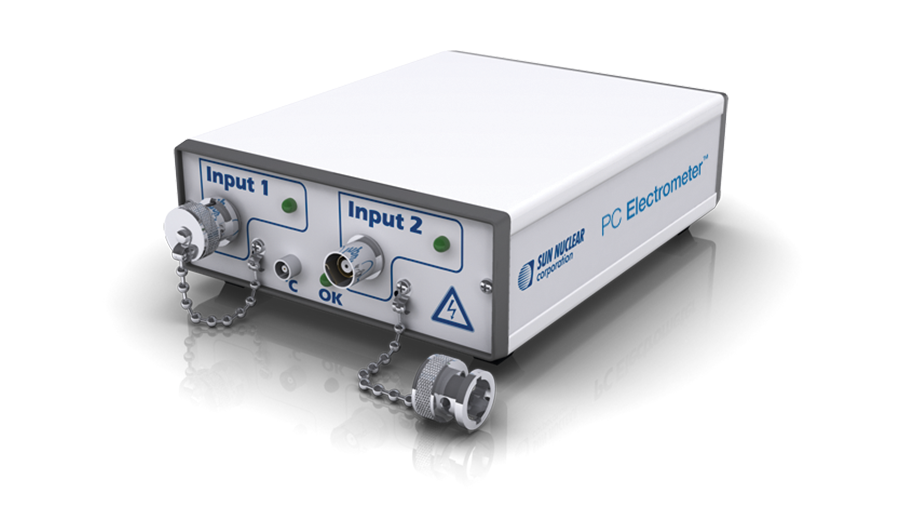

PC Electrometer is a compact, portable easy-to-use reference class electrometer with two measurement channels connects to computer via USB. Customisable PC software included, temperature probe input, fast warm-up time and all the reference class specifications. PC Electrometer options: BNC or TNC connectors, 1D Scanner (for full PDD functionality), ADCL Calibrations.

PC Electrometer is a compact, portable easy-to-use reference class electrometer with two measurement channels connects to computer via USB. Customisable PC software included, temperature probe input, fast warm-up time and all the reference class specifications.

PC Electrometer options: BNC or TNC connectors, 1D Scanner (for full PDD functionality), ADCL Calibrations.

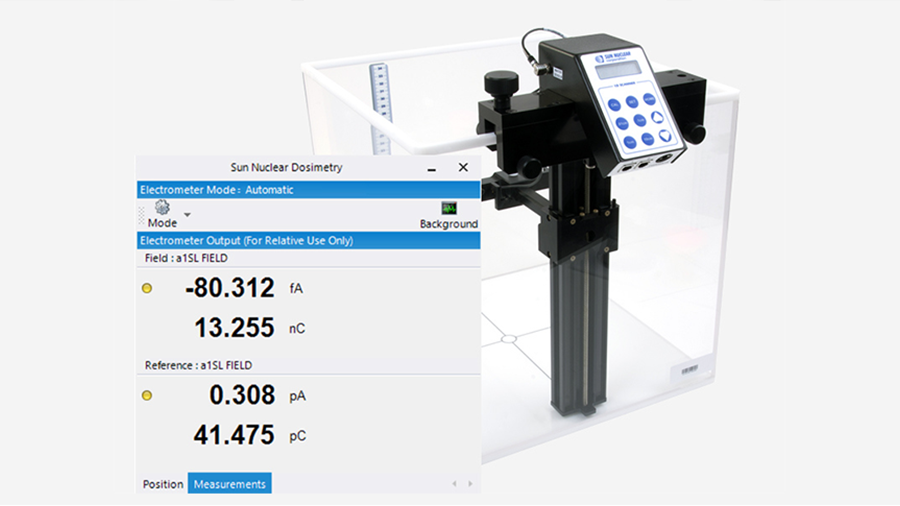

1D Scanner is a small water tank for accurate relative and absolute point dose and depth scan measurements. Acquire ionisation curve data with Excel logging function, accommodates electron cones without shifting plus has automatic water level detection and pendant or software control. Includes universal detector for most thimble-type chambers. 1D Scanner options: PC Electrometer & Scanning module (for full PDD scan functionality), Edge Detector, SNC350p,  levelling platform & holders.

1D Scanner is a small water tank for accurate relative and absolute point dose and depth scan measurements. Acquire ionisation curve data with Excel logging function, accommodates electron cones without shifting plus has automatic water level detection and pendant or software control. Includes universal detector for most thimble-type chambers.

1D Scanner options: PC Electrometer & Scanning module (for full PDD scan functionality), Edge DetectorSNC350p,  levelling platform & holders.


3D Scanner is a large cylindrical water scanner with auto setup and an advanced database software to give fast, accurate and efficient machine commissioning & annual QA.                                                                                             HARDWARE: Strong PMMA tank with ring drive mechanism ensures that detector maintains consistent orientation for all profiles. 65cm scanning range ensures 40cm diagonals at 30cm depth without a tank shift. RTP export to TPS systems and import other tank data.  AUTOSETUP: Includes automated leveling, centering, water level detection & hysteresis correction to eliminate user subjectivity.  SNC DOSIMETRY SOFTWARE: Organise by projects and queues. Includes pre-defined TPS collection queues or generate & customise your own. Results stored in a database for effective data management including easy query functionality. Data processing (centering, smoothing etc) traceable through layers with roll-back or comparison to raw data. 3D Scanner options: TNC or BNC connectors, 3D MiniLift, 3D Reservoir, TPR Kit, Water-proof Profiler, Edge detector, SNC350p, SNC125c scanning detector, SNC600c Farmer type detector, offset detector holders & detector holders to fit most chambers.

3D Scanner is a large cylindrical water scanner with auto setup and an advanced database software to give fast, accurate and efficient machine commissioning & annual QA.

HARDWARE: Strong PMMA tank with ring drive mechanism ensures that detector maintains consistent orientation for all profiles. 65cm scanning range ensures 40cm diagonals at 30cm depth without a tank shift. RTP export to TPS systems and import other tank data.

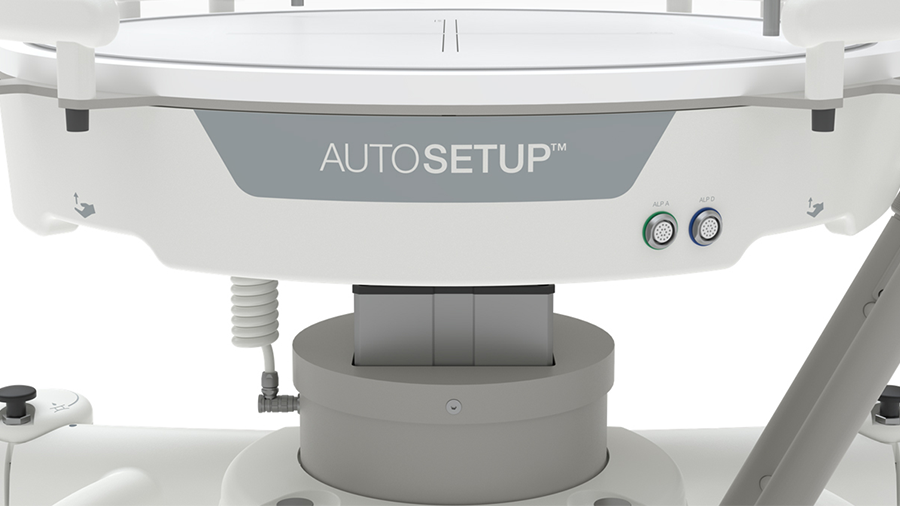

AUTOSETUP: Includes automated leveling, centering, water level detection & hysteresis correction to eliminate user subjectivity.
SNC DOSIMETRY SOFTWARE: Organise by projects and queues. Includes pre-defined TPS collection queues or generate & customise your own. Results stored in a database for effective data management including easy query functionality. Data processing (centering, smoothing etc) traceable through layers with roll-back or comparison to raw data.

3D Scanner options: TNC or BNC connectors, 3D MiniLift
3D Reservoir, TPR KitWater-proof ProfilerEdge detectorSNC350p, SNC125c scanning detector, SNC600c Farmer type detector, offset detector holders & detector holders to fit most chambers.

3D MiniLift for use with 3D Scanner clears Linac couch ring and X, Y, Z motors support 3D Scanner and AutoSetup functionality. Measurement, transport and storage configurations.

3D MiniLift for use with 3D Scanner clears Linac couch ring and X, Y, Z motors support 3D Scanner and AutoSetup functionality. Measurement, transport and storage configurations.

3D Reservoir for fast fill and drain times and TPR support.

3D Reservoir for fast fill and drain times and TPR support.

3D TPR directly and efficiently measures Tissue Phantom Ratios on the drain (1.5 minutes) or fill (3.5 minutes) cycles. Resolution 0.3 - 0.4mm. Use for commissioning, calculated TPR verification or ongoing QA. Requires 3D Scanner & 3D Reservoir.

3D TPR directly and efficiently measures Tissue Phantom Ratios on the drain (1.5 minutes) or fill (3.5 minutes) cycles. Resolution 0.3 - 0.4mm. Use for commissioning, calculated TPR verification or ongoing QA.

Requires 3D Scanner & 3D Reservoir.


WaterProof Profiler is a linear diode array of 127 SunPoint diodes for use in place of a single chamber for fast TPS commissioning and ongoing QA. Use in air or in water to dramatically reduce the time required to collect dynamic wedges and other photon dosimetry including physical wedges and open fields. Attaches directly to 3D Scanner - no tools or electrometer required. Requires 3D Scanner.

WaterProof Profiler is a linear diode array of 127 SunPoint diodes for use in place of a single chamber for fast TPS commissioning and ongoing QA. Use in air or in water to dramatically reduce the time required to collect dynamic wedges and other photon dosimetry including physical wedges and open fields. Attaches directly to 3D Scanner - no tools or electrometer required.

Requires 3D Scanner.

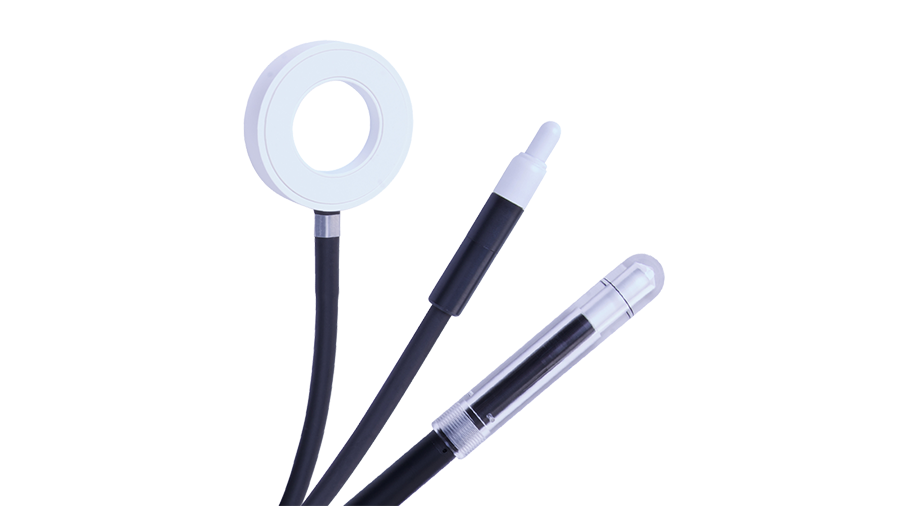

SNC125c for the 3D Scanner is a waterproof, fully guarded thimble ionisation chamber for scanning (field and reference) of photon and electron beams using the 3D Scanner. Thinner and elongated chamber volume design reduces the convolution of high dose gradient regions for profile and depth measurements, giving the sensitivity of a 0.125cc chamber but with a penumbra closer to a micro-chamber. White chamber body aids setup verification. Requires 3D Scanner. SNC125c options: TNC or BNC connectors.

SNC125c for the 3D Scanner is a waterproof, fully guarded thimble ionisation chamber for scanning (field and reference) of photon and electron beams using the 3D Scanner. Thinner and elongated chamber volume design reduces the convolution of high dose gradient regions for profile and depth measurements, giving the sensitivity of a 0.125cc chamber but with a penumbra closer to a micro-chamber. White chamber body aids setup verification.

Requires 3D Scanner.

SNC125c options: TNC or BNC connectors.

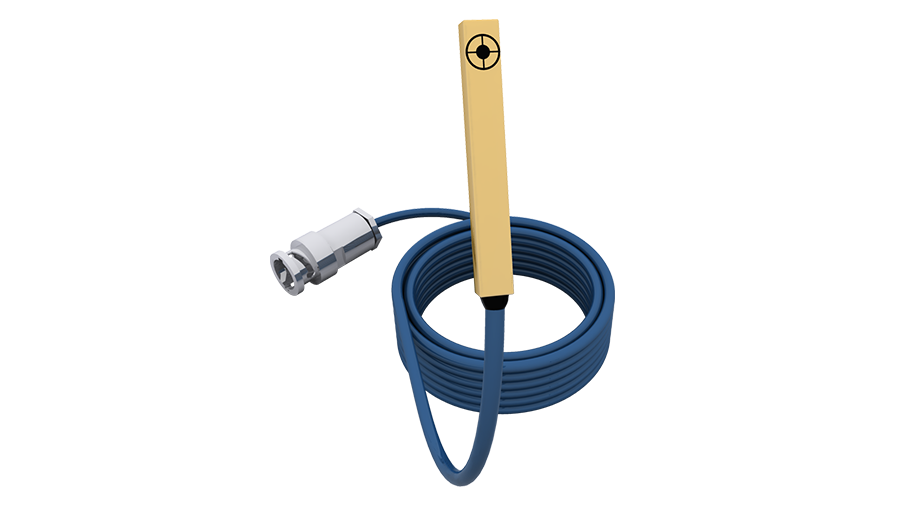

Edge detector is a diode detector for measuring in-water or in-air photon high dose gradients and small field PDD and profiles, including for SRS, SBRT & IMRT techniques, with high resolution and accuracy. Edge detector options: TNC or BNC connectors, 3D Scanner, 1D Scanner, holders available for most tanks.

Edge detector is a diode detector for measuring in-water or in-air photon high dose gradients and small field PDD and profiles, including for SRS, SBRT & IMRT techniques, with high resolution and accuracy.

Edge detector options: TNC or BNC connectors, 3D Scanner1D Scanner, holders available for most tanks.

SNC350p is a waterproof, fully-guarded, parallel-plate Roos-type ion chamber, which minimises perturbation effects. To be used for reference, field and scanning dosimetry of Linac electron beams. White chamber body aids setup verification. SNC350p options: TNC or BNC connectors.

SNC350p is a waterproof, fully-guarded, parallel-plate Roos-type ion chamber, which minimises perturbation effects. To be used for reference, field and scanning dosimetry of Linac electron beams. White chamber body aids setup verification.

SNC350p options: TNC or BNC connectors.


SNC600c is a reference-class classic Farmer-type designed  ionisation chamber which is waterproof, fully-guarded and vented. Use for photons and electrons in both slab phantoms and in water. White chamber body & rotational orientation mark aids setup accuracy.n. SNC600c options: TNC or BNC connectors.

SNC600c is a reference-class classic Farmer-type designed  ionisation chamber which is waterproof, fully-guarded and vented. Use for photons and electrons in both slab phantoms and in water. White chamber body & rotational orientation mark aids setup accuracy.n.

SNC600c options: TNC or BNC connectors.

SNC Machine is a web-browser based automated, efficient and flexible database solution for analysing, storing and trending imaging and mechanical QA including VMAT tests, CBCT, WL, starshots and more. All hardware, software and services are pre-installed on the SNC Server ready for use. SNC Phantoms: MV-QA & kV-QA (imaging), FS-QA (including scaling, asymmetric light/radiation field alignment), and WL-QA imaging QA phantoms for daily, monthly & annual QA on MV beams, EPIDs and kV panels. Use in conjunction with SNC Machine to analyse images for commissioning and ongoing QA, (or use your existing phantoms).

SNC Machine is a web-browser based automated, efficient and flexible database solution for analysing, storing and trending imaging and mechanical QA including VMAT tests, CBCT, WL, starshots and more. All hardware, software and services are pre-installed on the SNC Server ready for use.

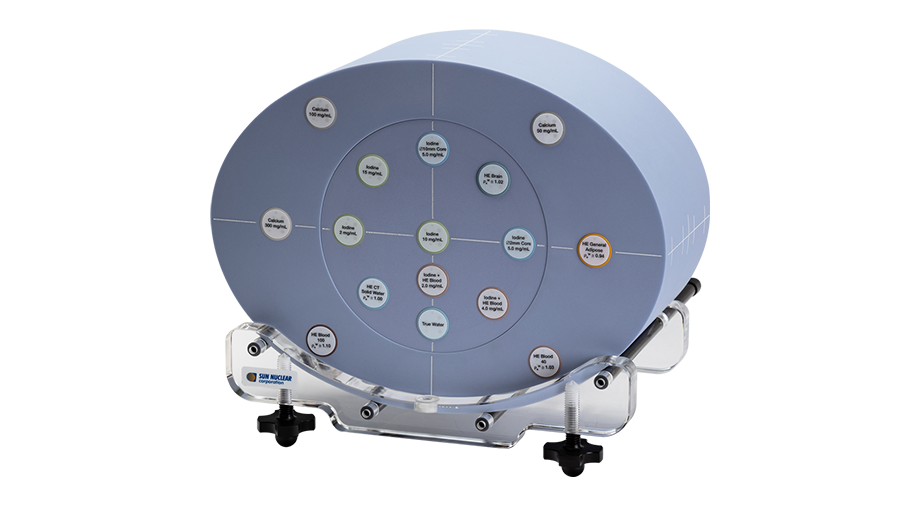

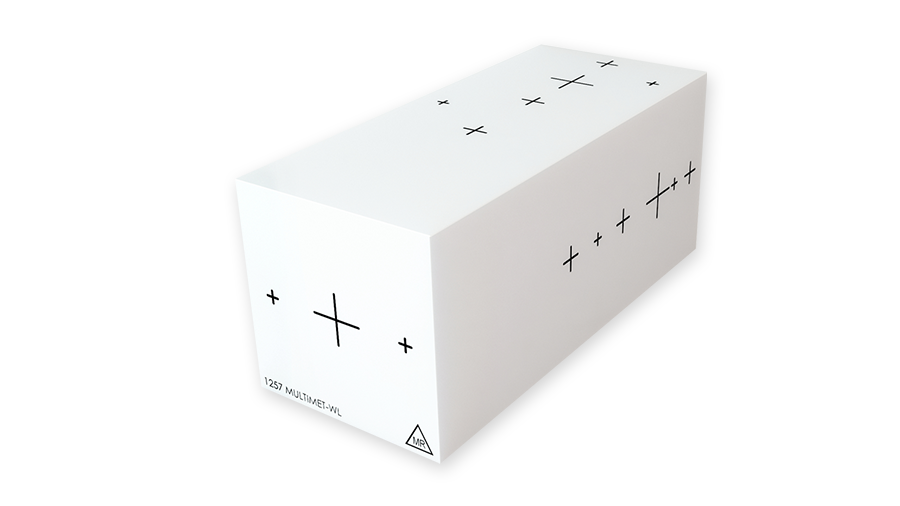

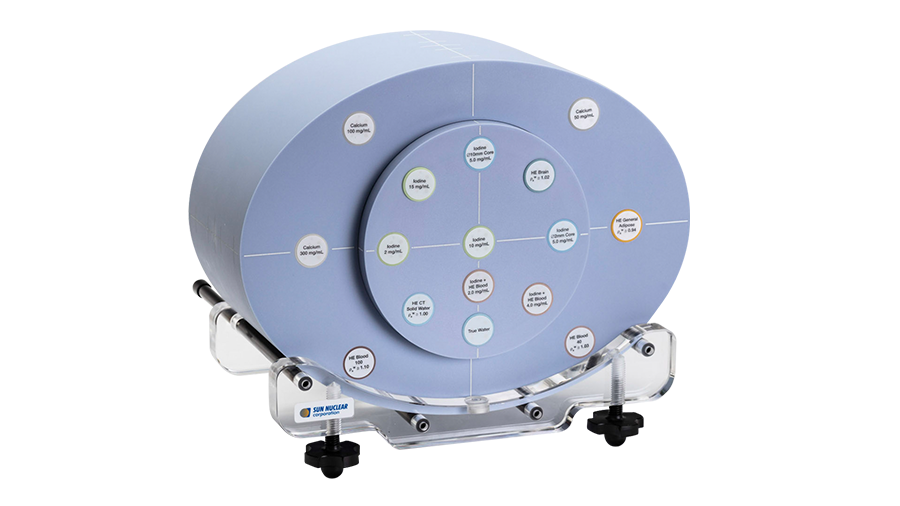

SNC Phantoms: MV-QA & kV-QA (imaging), FS-QA (including scaling, asymmetric light/radiation field alignment), and WL-QA imaging QA phantoms for daily, monthly & annual QA on MV beams, EPIDs and kV panels. Use in conjunction with SNC Machine to analyse images for commissioning and ongoing QA, (or use your existing phantoms).

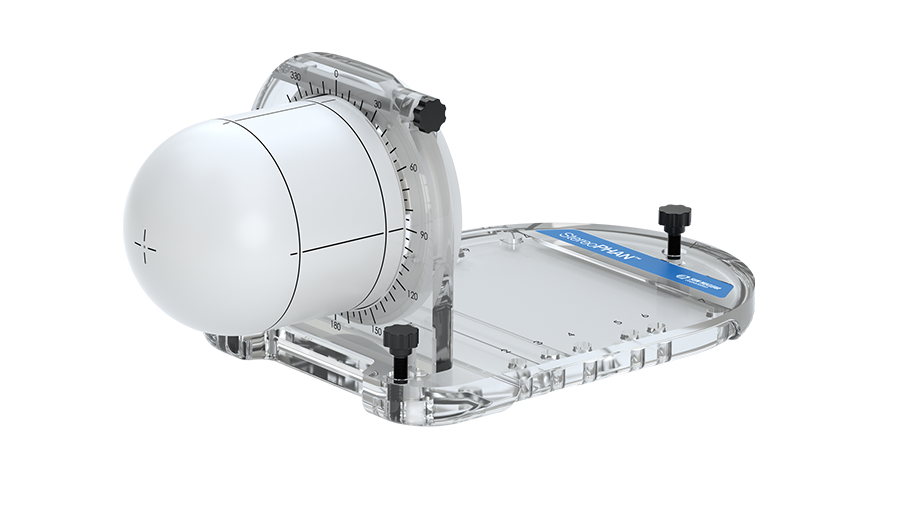

StereoPhan is an end-to-end Stereotactic QA testing including MRI & CT imaging, treatment planning such as image fusion QA, and delivery of treatment. Use to evaluate geometric accuracy such as optical/geometric isocentre, table indexing and CBCT to MV/kV alignment, plus absolute, point dose and film relative dose measurements. Requires no tools! Measure any plane - compatible with GammaKnife, BrainLab and Fraction head-frames.  Interchangeable inserts: film, ion chamber, CT/MRI (all 3 soon available for CyberKnife); MRI Signal generator & universal spacer.

StereoPhan is an end-to-end Stereotactic QA testing including MRI & CT imaging, treatment planning such as image fusion QA, and delivery of treatment. Use to evaluate geometric accuracy such as optical/geometric isocentre, table indexing and CBCT to MV/kV alignment, plus absolute, point dose and film relative dose measurements. Requires no tools! Measure any plane - compatible with GammaKnife, BrainLab and Fraction head-frames.

Interchangeable inserts: film, ion chamber, CT/MRI (all 3 soon available for CyberKnife); MRI Signal generator & universal spacer.

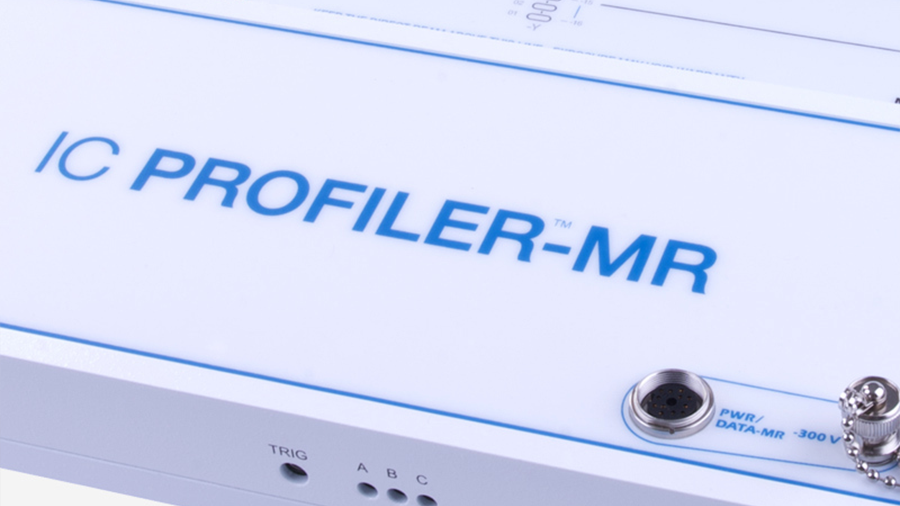

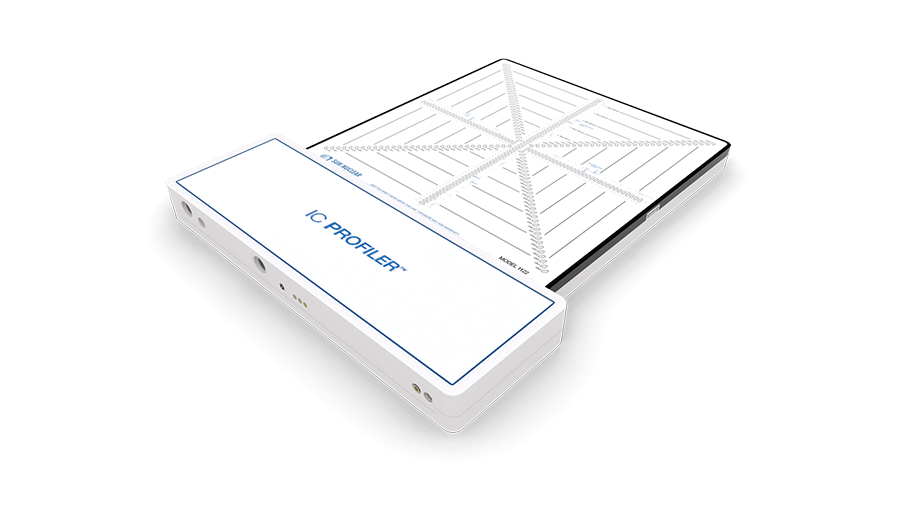

IC Profiler is used for Linac field installation, beam tuning, servicing and routine trending of beam characteristics. 251 ionisation chambers on X, Y and diagonal profiles acquires precise beam energy profiles real-time in one measurement. Analyse movie time plots, flatness, symmetry, output, field size, penumbra data, plus import water tank data and compare. IC Profiler options: GMF, Quad Wedges Plates for energy checks, Double Wedge plates, Solid Water HE build-up slabs, MRI-compatible IC Profiler.   Profiler 2 is used for real-time beam scan information in X & Y axes in one measurement. Uses 139 SunPoint diodes for monthly flatness and symmetry analysis, penumbra width, field size, light/radiation coincidence, beam centre & rotational sag QA. Profiler 2 options: IMF, Electron Wedge for electron energy QA, water-equivalent  or Solid Water HE build-up slabs, GMF (with Linac adapter plate) for gantry rotations measurements.

IC Profiler is used for Linac field installation, beam tuning, servicing and routine trending of beam characteristics. 251 ionisation chambers on X, Y and diagonal profiles acquires precise beam energy profiles real-time in one measurement. Analyse movie time plots, flatness, symmetry, output, field size, penumbra data, plus import water tank data and compare.

IC Profiler options: GMF, Quad Wedges Plates for energy checks, Double Wedge plates, Solid Water HE build-up slabs, MRI-compatible IC Profiler.



Profiler 2 is used for real-time beam scan information in X & Y axes in one measurement. Uses 139 SunPoint diodes for monthly flatness and symmetry analysis, penumbra width, field size, light/radiation coincidence, beam centre & rotational sag QA.

Profiler 2 options: IMF, Electron Wedge for electron energy QA, water-equivalent  or Solid Water HE build-up slabs, GMF (with Linac adapter plate) for gantry rotations measurements.

Gantry Mounting Fixture (GMF) fits in Linac accessory tray slot and holds IC Profiler array at 100cm SDD along with water equivalent slabs to enable accurate, stable measurement setup including while rotating the gantry. Can be used with electron cones up to 20x20sq.cm. Specify Elekta or Varian Linac type. Additional option for: IC Profiler. GMF with adaptor plate can be used for:  MapCheck 2, Profiler 2, Daily QA 3. Isocentric Mounting Fixture (IMF) fits in Linac accessory tray slot and holds array at 100cm SDD with water equivalent slabs to enable accurate, stable measurement setup including while rotating the gantry. Specify Varian, Elekta or Siemens Linac type. Additional option for: MapCheck 2,  Profiler 2 or Daily QA 3.

Gantry Mounting Fixture (GMF) fits in Linac accessory tray slot and holds IC Profiler array at 100cm SDD along with water equivalent slabs to enable accurate, stable measurement setup including while rotating the gantry. Can be used with electron cones up to 20x20sq.cm. Specify Elekta or Varian Linac type.

Additional option for: IC Profiler.

GMF with adaptor plate can be used for:  MapCheck 2Profiler 2Daily QA 3.

Isocentric Mounting Fixture (IMF) fits in Linac accessory tray slot and holds array at 100cm SDD with water equivalent slabs to enable accurate, stable measurement setup including while rotating the gantry. Specify Varian, Elekta or Siemens Linac type.

Additional option for: MapCheck 2Profiler 2 or Daily QA 3.


Daily QA 3 uses ion chambers and SunPoint diodes for photon and electron dose & energy, axial & transverse symmetry, flatness, plus radiation field alignment tests – all with one measurement per energy. Data collected automatically and available real-time in a trend-analysis database. Compatible with FFF, Tomotherapy and VMAT beams. Daily QA3 options: Wireless rf-Daily QA 3, IMF, GMF (with Linac adapter plate), additional bunker cable packages.

Daily QA 3 uses ion chambers and SunPoint diodes for photon and electron dose & energy, axial & transverse symmetry, flatness, plus radiation field alignment tests – all with one measurement per energy. Data collected automatically and available real-time in a trend-analysis database. Compatible with FFF, Tomotherapy and VMAT beams.

Daily QA3 options: Wireless rf-Daily QA 3, IMF, GMF (with Linac adapter plate), additional bunker cable packages.

Checkmate 2 is a constancy meter consisting of a single vented ionization chamber with automatic T&P correction, for a simple radiation output check. Checkmate 2 options: 1cm & 2cm acrylic build-up slabs.

Checkmate 2 is a constancy meter consisting of a single vented ionization chamber with automatic T&P correction, for a simple radiation output check.

Checkmate 2 options: 1cm & 2cm acrylic build-up slabs.

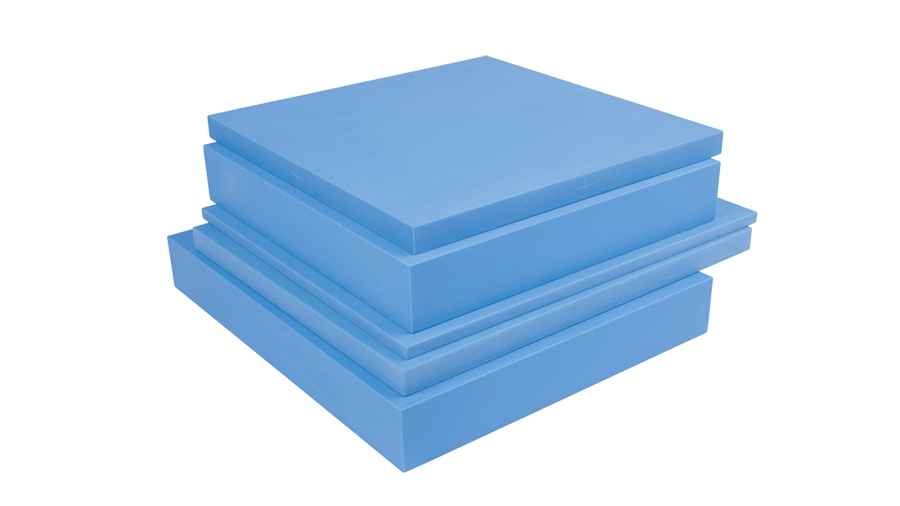

Solid Water High Equivalency (HE) provides improved uniformity and durability for higher homogeneity and 0.5% equivalence for therapy and imaging energy ranges. Standard and certified sizes available over a range of dimensions (including for the GMF, IMR and 2D arrays) and thicknesses 01.cm to 5.0cm.

Solid Water High Equivalency (HE) provides improved uniformity and durability for higher homogeneity and 0.5% equivalence for therapy and imaging energy ranges.

Standard and certified sizes available over a range of dimensions (including for the GMF, IMR and 2D arrays) and thicknesses 01.cm to 5.0cm.

SNC DICOM Listener is a software tool that 'listens' for an association from a TPS, then will group each patient dataset in the patient plan folder with subfolders for each DICOM file type (Structures, Plan, CT images etc) - ready for immediate use. Essential for time-saving and workflow efficiencies. Available free with ArcCheck and MapCheck2 SNC Patient software.

SNC DICOM Listener is a software tool that 'listens' for an association from a TPS, then will group each patient dataset in the patient plan folder with subfolders for each DICOM file type (Structures, Plan, CT images etc) - ready for immediate use.

Essential for time-saving and workflow efficiencies.

Available free with ArcCheck and MapCheck2 SNC Patient software.
